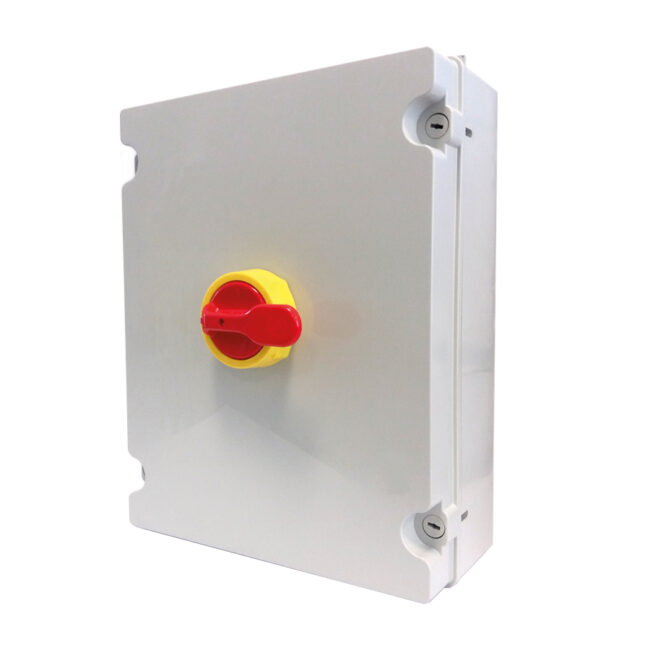

SQN160006BTF4
COMPLETE DEVICE IN THERMOLASTIC ENCLOSURE IP65 6 POLES • Opening in “0” position. • Red knob locking (Max 3 locks) in “0-OFF” position. • Dimensions: 376x300x125mm. • Grey box & cover. • Red/yellow actuator.
SQN125006BTF4
COMPLETE DEVICE IN THERMOPLASTIC ENCLOSURE IP65 6 POLES • Opening in “0” position. • Red knob locking (Max 3 locks) in “0-OFF” position. • Dimensions: 376x300x125mm. • Grey box and cover. • Red/yellow actuator.

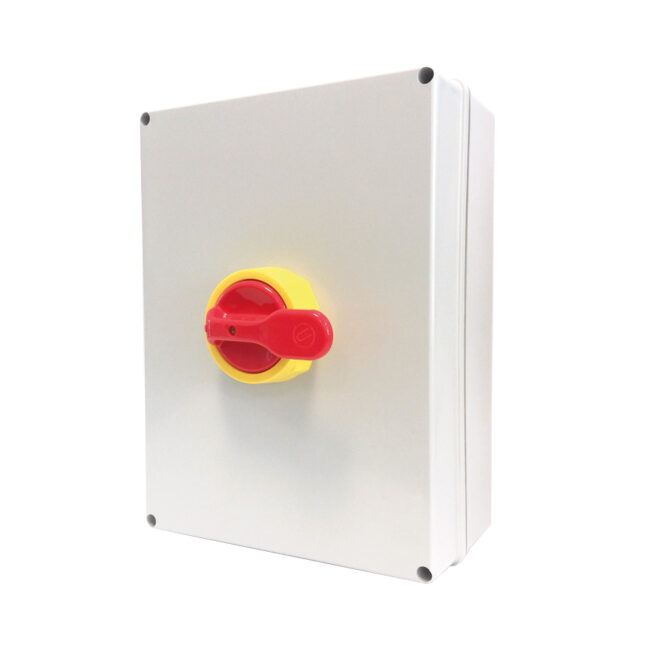

SQN160003BTF8
COMPLETE DEVICE IN THERMOPLASTIC ENCLOSURE IP65 • Opening in “0” position. • Red knob locking (Max 3 locks) in “0-OFF” position. • Dimensions: 310x230x115mm. • Grey box & cover. • Red/yellow actuator.
SQN125003BTF8
COMPLETE DEVICE IN THERMOPLASTIC ENCLOSURE IP65 • Opening in “0” position. • Red knob locking (Max 3 locks) in “0-OFF” position. • Dimensions: 310x230x115mm. • Grey box & cover. • Red/yellow actuator.

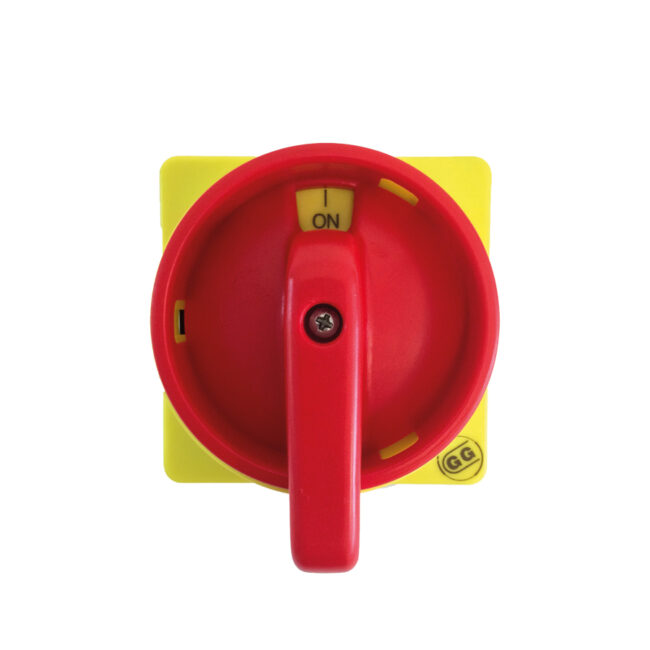

322/0008
SQN125/SQN160 Yellow Plate 1-0-2 Red knob Locking Facility (max 3 lock) ⃞ 67
320/0008
SQN125/SQN160 Yellow Plate 1-0-2 Red knob Locking Facility (max 3 lock) ⃞ 67
320/0001
SQN125/SQN160 Yellow Plate 0-1 Red knob Locking Facility (max 3 lock) ⃞ 67

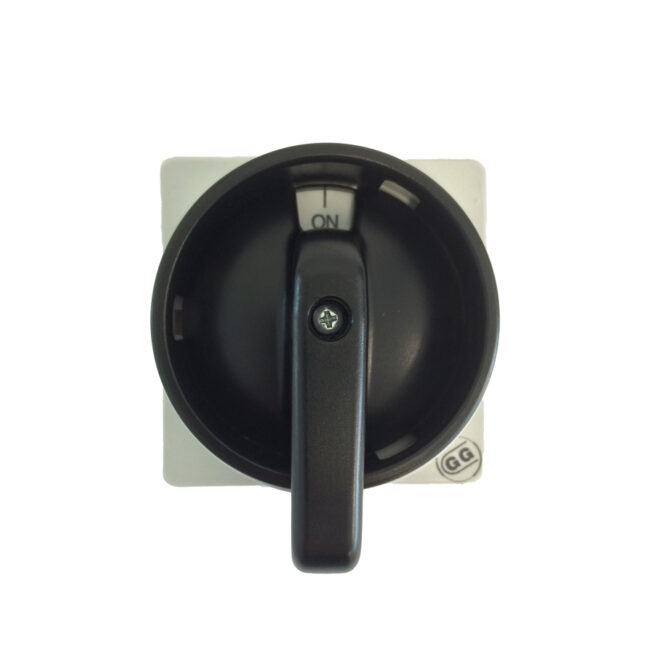

321/0008
SQN125/SQN160 Grey Plate 1-0-2 Black knob Locking Facility (max 3 lock) ⃞ 67
319/0008
SQN125/SQN160 Grey Plate 1-0-2 Black knob Locking Facility (max 3 lock) ⃞ 67
319/0001
SQN125/SQN160 Grey Plate 0-1 Black knob Locking Facility (max 3 lock) ⃞ 67

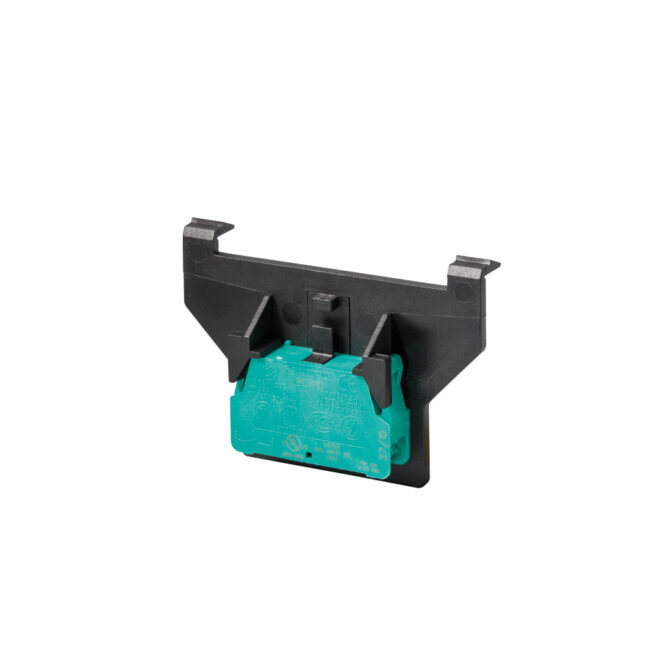

SQ010AS6B
SQ010AS6B > AUX 1N0
SQ010AS5B
SQ010AS5B > AUX 1NC
SQ010AS6R
SQ010AS6R > AUX 1N0
SQ010AS5R
SQ010AS5R > AUX 1NC

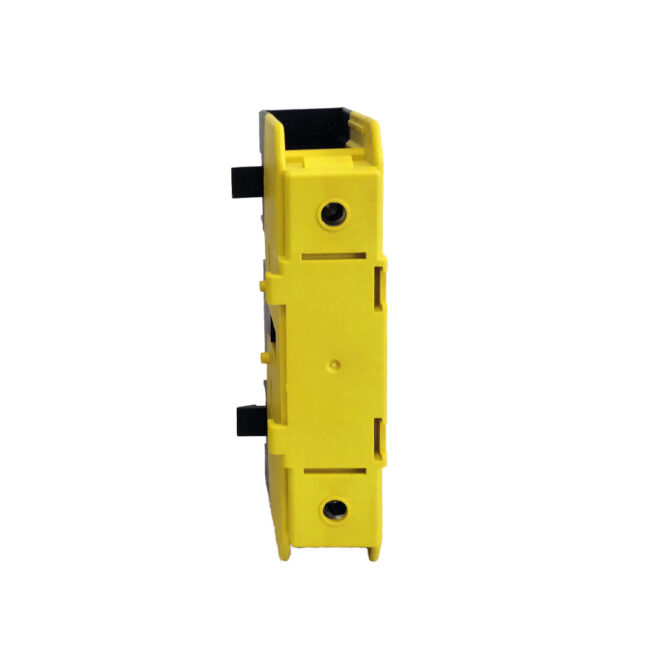

SQN160 TYPE B – ADDITIONAL POLES
SQN160AFPB > Additional pole NO SQN160ANIB > 4th pole (early make contact) SQN160ANPB > Neutral terminal SQN160APEB > Ground terminal
SQN125 TYPE B – ADDITIONAL POLES
SQN125AFPB > Additional pole NO SQN125ANIB > 4th pole (early make contact) SQN125ANPB > Neutral terminal SQN125APEB > Ground terminal

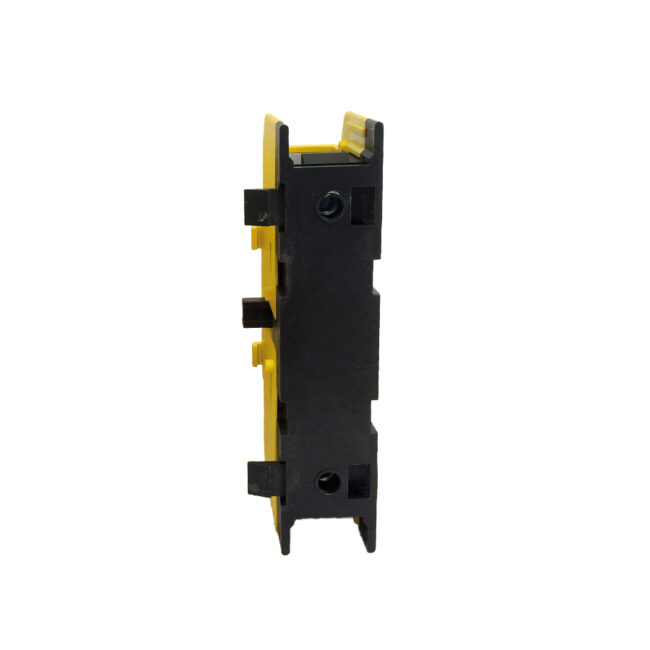

SQN160 TYPE R – ADDITIONAL POLES
SQN160AFPR > Additional pole NO SQN160ANIR > 4th pole (early make contact) SQN160ANPR > Neutral terminal SQN160APER > Ground terminal
SQN125 TYPE R – ADDITIONAL POLES
SQN125AFPR > Additional pole NO SQN125ANIR > 4th pole (early make contact) SQN125ANPR > Neutral terminal SQN125APER > Ground terminal
SQN160033B
TYPE B CHANGEOVER 3 POLES Range from 125A ÷ 160A Extensible 3+3 poles series (ChangeOver) Control shaft □ 6mm Fixing box DIN RAIL DIN-EN 50022-35 or screws Terminal Protection Degree: IP20 Extensibility to auxiliary and power contacts

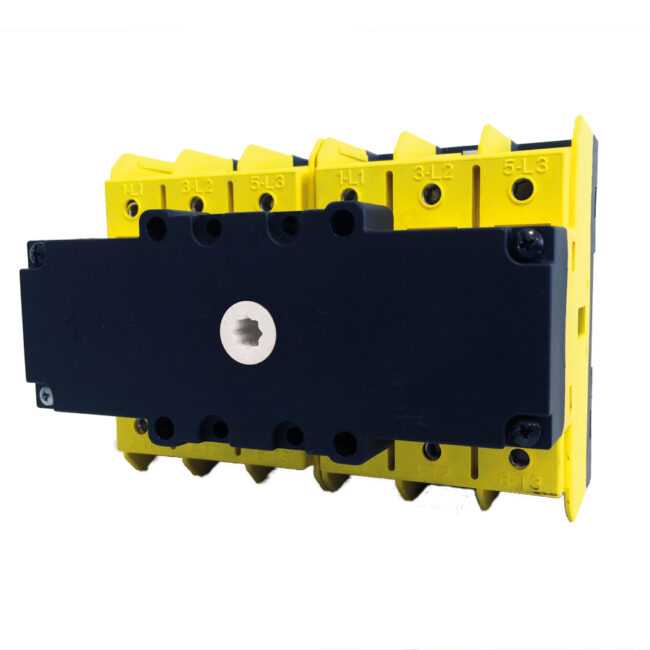

SQN160006B
TYPE B 6 POLES Range from 125A ÷ 160A Extensible 6 poles series (Hexapolar) Control shaft □ 6mm Fixing box DIN RAIL DIN-EN 50022-35 or screws Terminal Protection Degree: IP20 Extensibility to auxiliary and power contacts
