SQ032 TYPE R – ADDITIONAL POLES
SQ032AFPR > Additional pole NO SQ032ANIR > 4th pole (early make contact) SQ032ANPR > Neutral terminal SQ032APER > Ground terminal

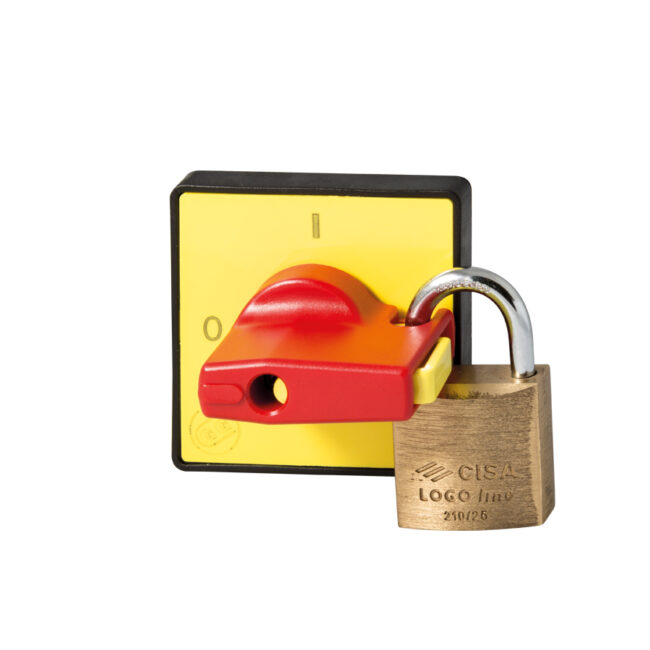

069/0001
Finishing for central fixing Ø22 Door Locking Yellow front plate – Red knob suitable for locks (Max 1 lock) Dimensions 48×48 suitable to be coupled with the series: SQ025, SQ032, SE16, SE32

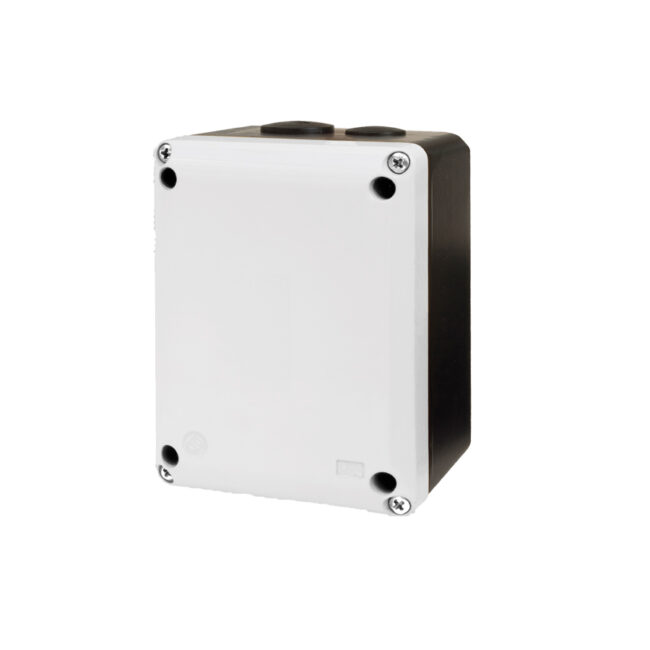

BNA/ENGA
METAL BOX COVER WITHOUT HOLES IP65 • Bodies – Panel Mounting Type R and Base Mounting Type B. • Complete with nr. 2 M40 cable glands. • Dimensions: 150x200x110 mm. • Black box – Grey cover. Max 4 poles.
BNA/0NGA
METAL BOX COVER WITHOUT HOLES IP65 • Bodies – Panel Mounting Type R and Base Mounting Type B. • Complete with nr. 2 M20 and nr. 2 M25 cable glands plugs. • Dimensions: 105x140x85 mm. • Black box – Grey cover. Max 4 poles for SQ025/SQ032 Max 3 poles for SQ040/SQ063

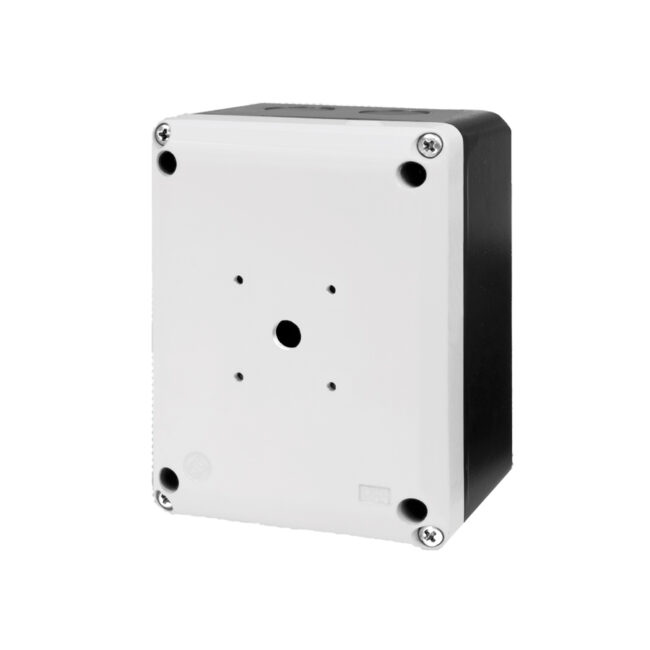

BF4/DNG0
THERMOPLASTIC BOX IP65 • Bodies – Base Mounting Type B. • Arranged for nr. 4 M25/M32 cable glands. • Dimensions: 130x180x106 mm. • Black box – Grey cover. Max 6 poles for SQ025/SQ032 Max 4 poles for SQ040/SQ063

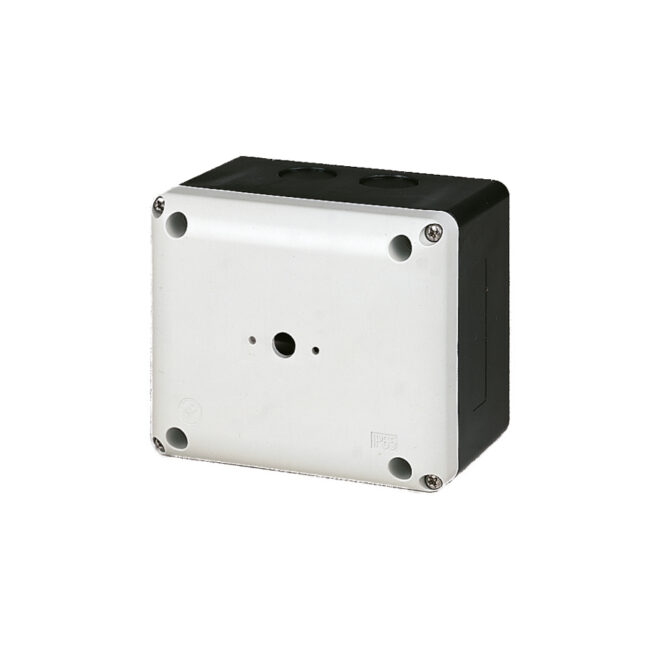

BF3/FNG0
THERMOPLASTIC BOX IP65 • Bodies – Panel Mounting Type R. • Arranged for nr. 8 Pg 16 – M20 cable glands. • Dimensions: 120x100x85 mm. • Black box – Grey cover. Max 4 poles.
SQ063003BAB0
COMPLETE DEVICE IN METAL ENCLOSURE IP65 • 3 poles. • Opening in “0” position. • Complete with nr. 2 M20 + nr. 2 M25 cable glands plugs. • With locking facility in “0 – OFF” (Max 3 locks). • Dimensions: 105x140x85 mm. • Black box – Yellow cover – Red knob.
SQ040003BAB0
COMPLETE DEVICE IN METAL ENCLOSURE IP65 • 3 poles. • Opening in “0” position. • Complete with nr. 2 M20 + nr. 2 M25 cable glands plugs. • With locking facility in “0 – OFF” (Max 3 locks). • Dimensions: 105x140x85 mm. • Black box – Yellow cover – Red knob.
SQ032003DA10
COMPLETE DEVICE IN METAL ENCLOSURE IP65 • 3 poles. • Opening in “0” position. • Complete with nr. 2 M20 + nr. 2 M25 cable glands plugs. • With locking facility in “0 – OFF” (Max 3 locks). • Dimensions: 105x140x85 mm. • Black box – Yellow cover – Red knob.
SQ025003DA10
COMPLETE DEVICE IN METAL ENCLOSURE IP65 • 3 poles. • Opening in “0” position. • Complete with nr. 2 M20 + nr. 2 M25 cable glands plugs. • With locking facility in “0 – OFF” (Max 3 locks). • Dimensions: 105x140x85 mm. • Black box – Yellow cover – Red knob.
SQ063003BAB9
COMPLETE DEVICE IN METAL ENCLOSURE IP65 • 3 poles. • Opening in “0” position. • Complete with nr. 2 M40 cable glands plugs. • With locking facility in “0 – OFF” (Max 3 locks). • Dimensions: 150x200x110 mm. • Black box – Grey cover – Black knob.
SQ040003BAB9
COMPLETE DEVICE IN METAL ENCLOSURE IP65 • 3 poles. • Opening in “0” position. • Complete with nr. 2 M40 cable glands plugs. • With locking facility in “0 – OFF” (Max 3 locks). • Dimensions: 150x200x110 mm. • Black box – Grey cover – Black knob.
SQ032003DA09
COMPLETE DEVICE IN METAL ENCLOSURE IP65 • 3 poles. • Opening in “0” position. • Complete with nr. 2 M20 + nr. 2 M25 cable glands plugs. • With locking facility in “0 – OFF” (Max 3 locks). • Dimensions: 105x140x85 mm. • Black box – Grey cover – Black knob.
SQ025003DA09
COMPLETE DEVICE IN METAL ENCLOSURE IP65 • 3 poles. • Opening in “0” position. • Complete with nr. 2 M20 + nr. 2 M25 cable glands plugs. • With locking facility in “0 – OFF” (Max 3 locks). • Dimensions: 105x140x85 mm. • Black box – Grey cover – Black knob.

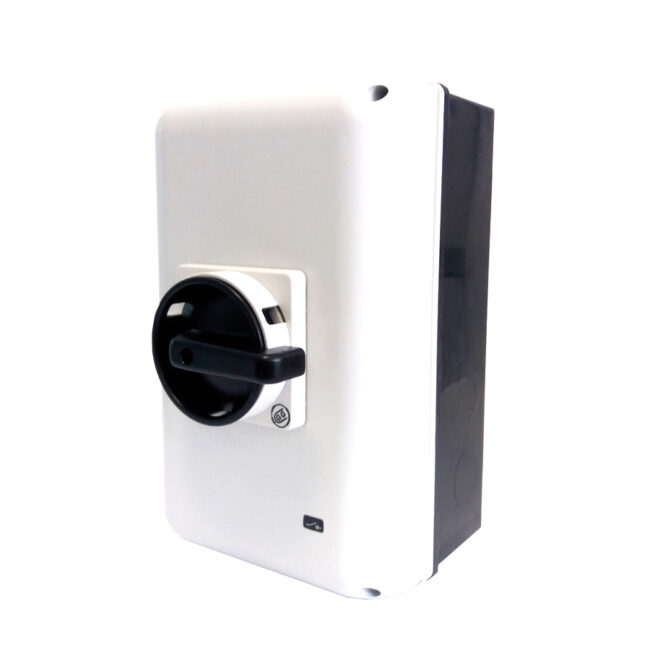

SQ063003BC42
COMPLETE DEVICE IN THERMOPLASTIC ENCLOSURE IP65 • 3 poles. • Opening in “0” position. • Complete with nr. 2 M32 and nr. 2 M40 cable gland plugs. • With locking facility in “0 – OFF” (Max 3 locks). • Dimensions: 140x230x114 mm • Black box – Grey cover – Black knob. • UL Approval.

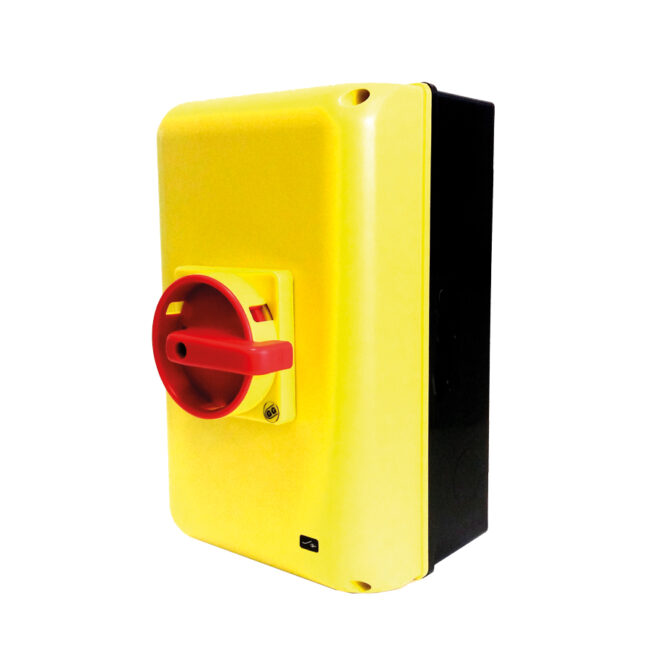

SQ063003BC41
COMPLETE DEVICE IN THERMOPLASTIC ENCLOSURE IP65 • 3 poles. • Opening in “0” position. • Complete with nr. 2 M32 and nr. 2 M40 cable gland plugs. • With locking facility in “0 – OFF” (Max 3 locks). • Dimensions: 140x230x114 mm • Black box – Yellow cover – Red knob. • UL Approval.

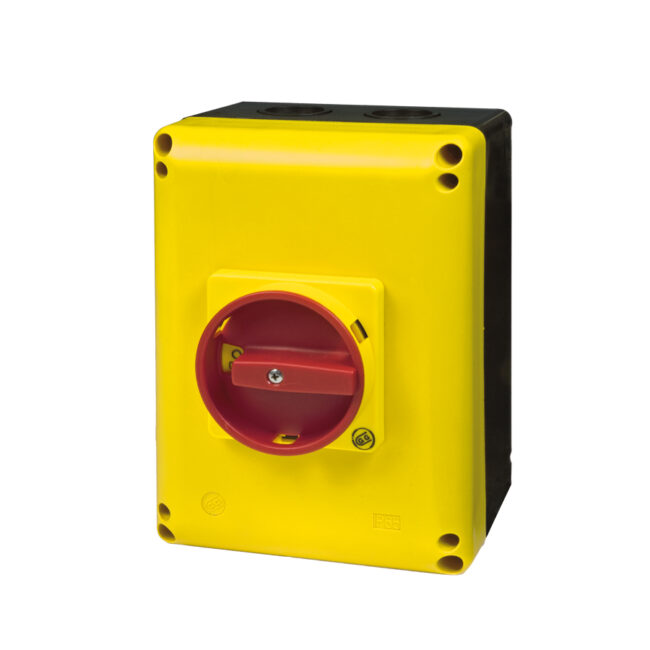

SQ063003BE10
COMPLETE DEVICE IN THERMOPLASTIC ENCLOSURE IP65 • 3 poles. • Opening in “0” position. • Arranged with nr. 4 cable glands M25/M32 + nr. 2 closed holes ø22,5 mm on the bottom. • With locking facility in “0 – OFF” (Max 3 locks). • Dimensions: 130x180x106 mm. • Black box – Yellow cover – Red…
SQ040003BE10
COMPLETE DEVICE IN THERMOPLASTIC ENCLOSURE IP65 • 3 poles. • Opening in “0” position. • Arranged with nr. 4 cable glands M25/M32 + nr. 2 closed holes ø22,5 mm on the bottom. • With locking facility in “0 – OFF” (Max 3 locks). • Dimensions: 130x180x106 mm. • Black box – Yellow cover – Red…
SQ032006BE10
COMPLETE DEVICE IN THERMOPLASTIC ENCLOSURE IP65 • 6 poles. • Opening in “0” position. • Arranged with nr. 4 cable glands M25/M32 + nr. 2 closed holes ø22,5 mm on the bottom. • With locking facility in “0 – OFF” (Max 3 locks). • Dimensions: 130x180x106 mm. • Black box – Yellow cover – Red…
SQ025006BE10
COMPLETE DEVICE IN THERMOPLASTIC ENCLOSURE IP65 • 6 poles. • Opening in “0” position. • Arranged with nr. 4 cable glands M25/M32 + nr. 2 closed holes ø22,5 mm on the bottom. • With locking facility in “0 – OFF” (Max 3 locks). • Dimensions: 130x180x106 mm. • Black box – Yellow cover – Red…
