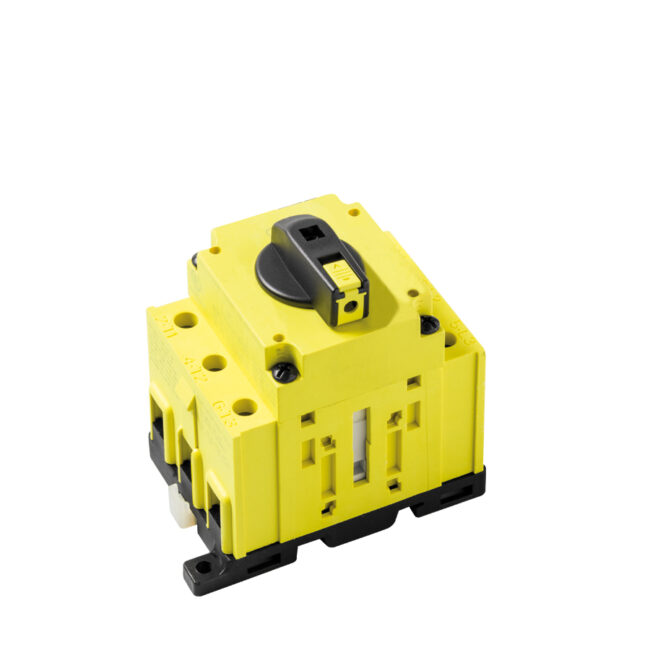

DIRECT COMMAND TYPE D-L5N 2-3 POLES Direct Command Range from 40A ÷ 63A Extensible 3 poles series Fixing box DIN RAIL DIN-EN 50022-35 or screws Completed with knob locking command Terminal Protection Degree: IP20 Extensibility to auxiliary and power contacts
DIRECT COMMAND TYPE D-L5N 2-3 POLES Direct Command Range from 40A ÷ 63A Extensible 3 poles series Fixing box DIN RAIL DIN-EN 50022-35 or screws Completed with knob locking command Terminal Protection Degree: IP20 Extensibility to auxiliary and power contacts

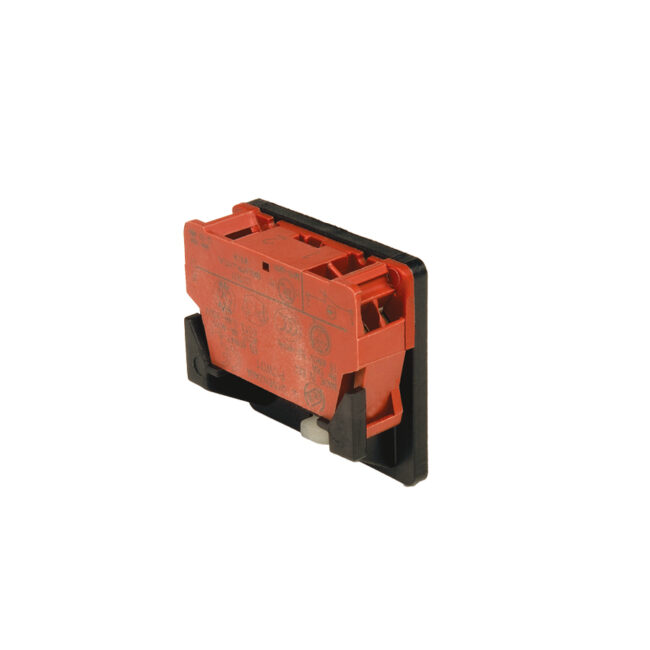

SQ010AS6B > AUX 1N0
SQ010AS5B > AUX 1NC
SQN160AFPB > Additional pole NO SQN160ANIB > 4th pole (early make contact) SQN160ANPB > Neutral terminal SQN160APEB > Ground terminal
SQN125AFPB > Additional pole NO SQN125ANIB > 4th pole (early make contact) SQN125ANPB > Neutral terminal SQN125APEB > Ground terminal

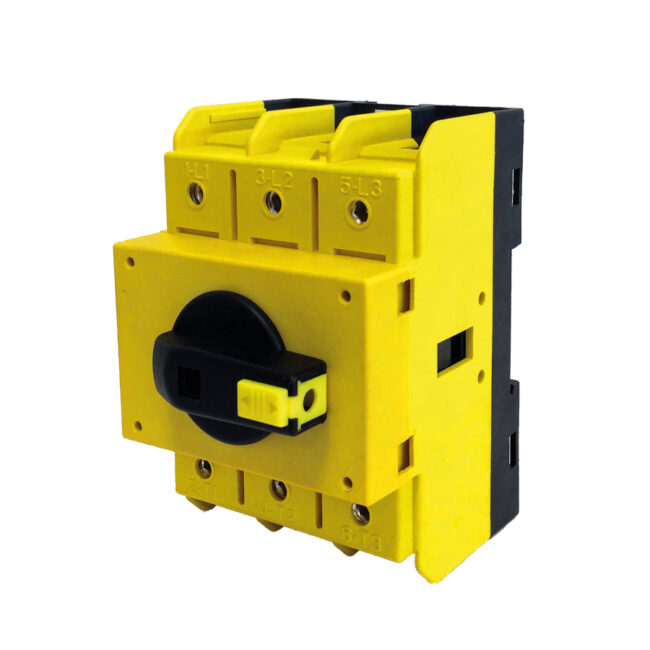

TYPE B 3 POLES Range from 125A ÷ 160A Extensible 3 poles series Direct Command and Door Locking Control shaft □ 6mm Fixing box DIN RAIL DIN-EN 50022-35 or screws Completed with knob locking command Terminal Protection Degree: IP20 Extensibility to auxiliary and power contacts
TYPE B 3 POLES Range from 125A ÷ 160A Extensible 3 poles series Direct Command and Door Locking Control shaft □ 6mm Fixing box DIN RAIL DIN-EN 50022-35 or screws Completed with knob locking command Terminal Protection Degree: IP20 Extensibility to auxiliary and power contacts
COMPLETE DEVICE IN THERMOPLASTIC ENCLOSURE IP65 • 3 poles. • Opening in “0” position. • Arranged with nr. 4 cable glands M25/M32 + nr. 2 closed holes ø22,5 mm on the bottom. • With locking facility in “0 – OFF” (Max 3 locks). • Dimensions: 130x180x106 mm. • Black box – Yellow cover – Red…
COMPLETE DEVICE IN THERMOPLASTIC ENCLOSURE IP65 • 3 poles. • Opening in “0” position. • Arranged with nr. 4 cable glands M25/M32 + nr. 2 closed holes ø22,5 mm on the bottom. • With locking facility in “0 – OFF” (Max 3 locks). • Dimensions: 130x180x106 mm. • Black box – Yellow cover – Red…
COMPLETE DEVICE IN THERMOPLASTIC ENCLOSURE IP65 • 3 poles. • Opening in “0” position. • Arranged for nr. 8 Pg16 cable glands of which nr. 2 on the bottom. • With locking facility in “0 – OFF” (Max 3 locks). • Dimensions: 120x100x85 mm. • Black box – Yellow cover – Red knob.
COMPLETE DEVICE IN THERMOPLASTIC ENCLOSURE IP65 • 3 poles. • Opening in “0” position. • Arranged for nr. 8 Pg16 cable glands of which nr. 2 on the bottom. • With locking facility in “0 – OFF” (Max 3 locks). • Dimensions: 120x100x85 mm. • Black box – Yellow cover – Red knob.
Terminal protection – 1 pole 20900025 > SQ025/SQ032 20900040 > SQ040/SQ063 20900065 > SQN125/SQN160
SQ010AS4B > AUX 1N0
SQ010AS3B > AUX 1NC

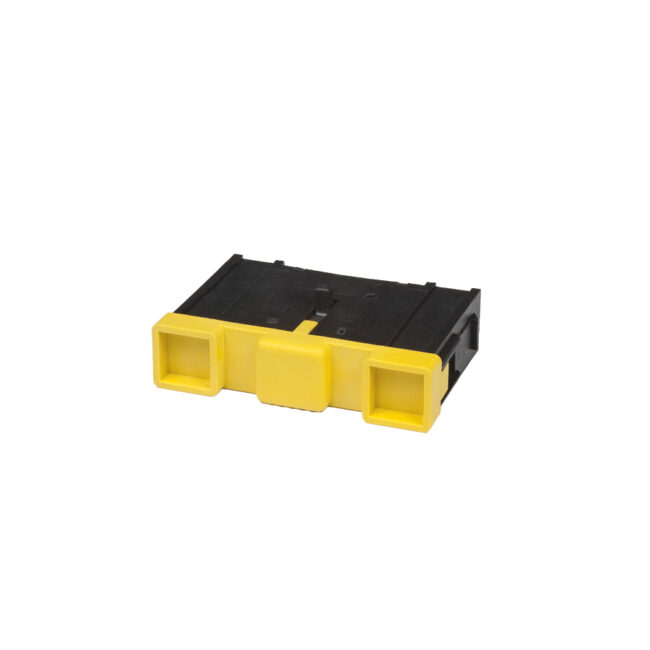

SQ063AFPB > Additional pole NO SQ063ANIB > 4th pole (early make contact) SQ063ANPB > Neutral terminal SQ063APEB > Ground terminal
SQ040AFPB > Additional pole NO SQ040ANIB > 4th pole (early make contact) SQ040ANPB > Neutral terminal SQ040APEB > Ground terminal

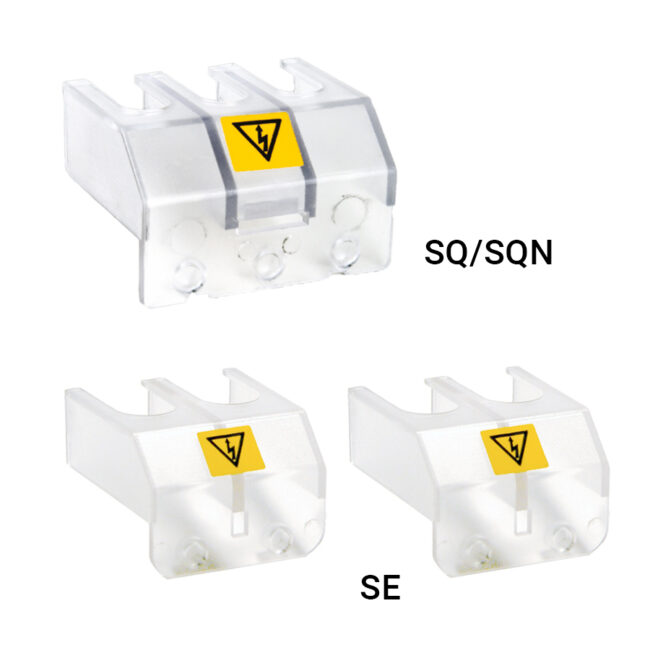

Terminal protection – 3 poles 20900023 > SQ025/SQ032 20900041 > SQ040/SQ063 20900064 > SQN125/SQN160 20900003 (including 2 pieces) > SE63/SE80/SE100
SQ010AS2B > AUX 1N0
SQ010AS1B > AUX 1NC
