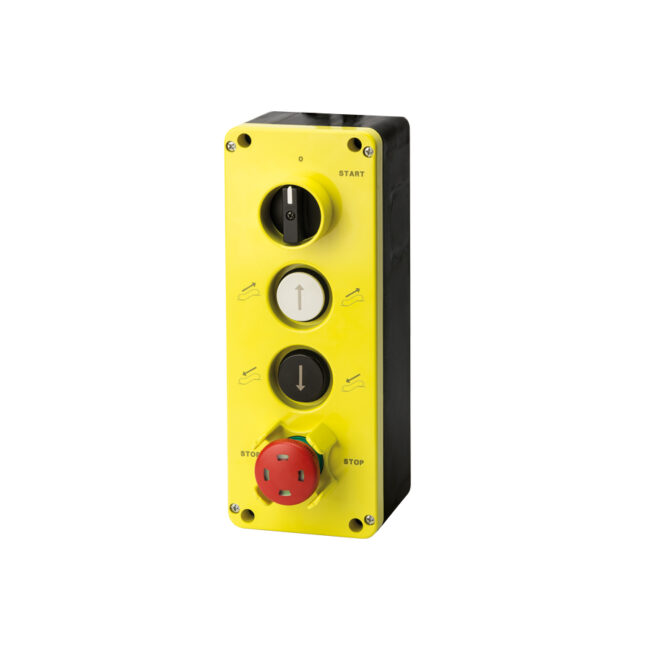

GM245
IP65 Maintenance station 1 Cam switch 0-1 45° switching – 2NC 1 Up push button – 1NO+1NC 1 Down push button – 1NO+1NC 1 Emergency stop EN ISO 13850 ø40 push-pull with vision – 1NC

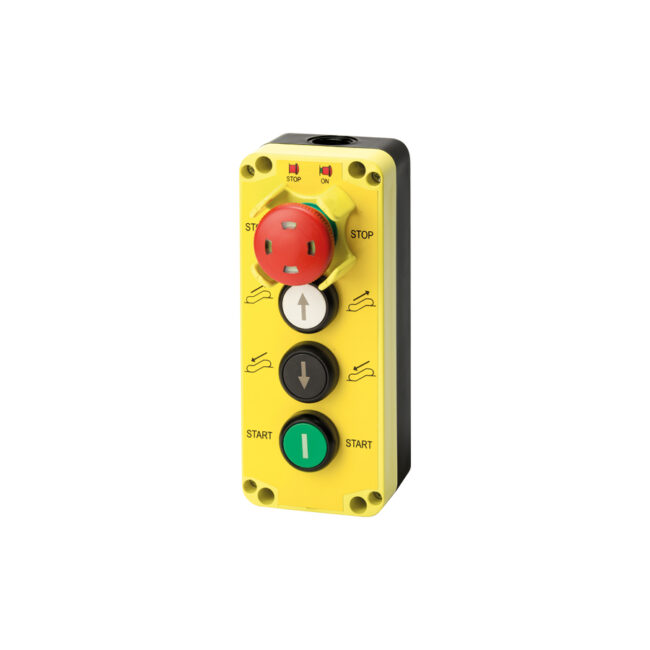

GM482
IP65 Maintenance station 1 Emergency stop EN ISO 13850 ø40 push-pull with vision – 1NC 1 Up push button – 1NO+1NC 1 Down push button – 1NO+1NC 1 Start push button – 1NO

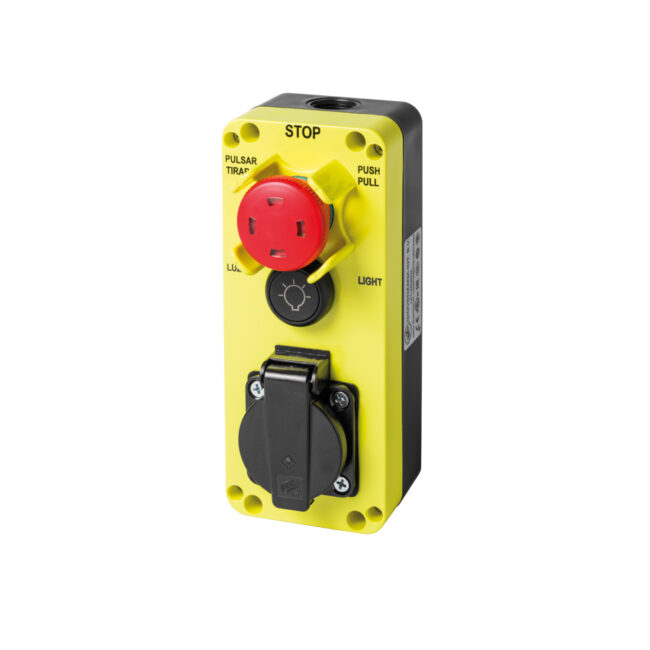

GM250/..
IP54 Shaft light 1 Emergency stop EN ISO 13850 mushroom ø40 push-pull with vision – 1NC 1 Light push button – 1NO GM250/EU > 1 Schuko Socket Outlet 16A GM250/FR > 1 Cenelec Socket Outlet GM250/US > 1 USA Socket Outlet GM250/SW > 1 Swiss Socket Outlet GM250/UK > 1 UK Standard Socket Outlet GM250/CH…

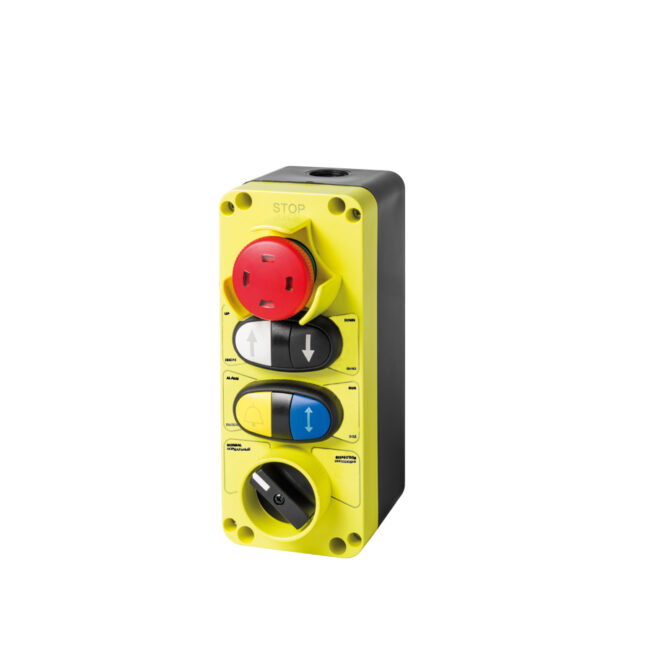

GM266
IP65 Maintenance station 1 Emergency stop EN ISO 13850 mushroom ø40 push-pull with vision – 1NC 1 Up/Down Dual push button – 2NO + 2NO 1 Alarm/Common Dual push button – 1NO + 1NO 1 Cam switch 1-2 90° switching – 2NO + 2NC …
GM359/..
Maintenance station with 50/5 LUX white light, knob selector and socket 1 Knob selector 0-1 – 1NO 1 Stopping closing hole 1 WHITE LED PCB – 50LUX@230 VAC – 5LUX@24 VDC GM359/EU > 1 Schuko Socket Outlet 16A GM359/FR > 1 Cenelec Socket Outlet GM359/US > 1 USA Socket Outlet GM359/SW > 1 Swiss Socket…

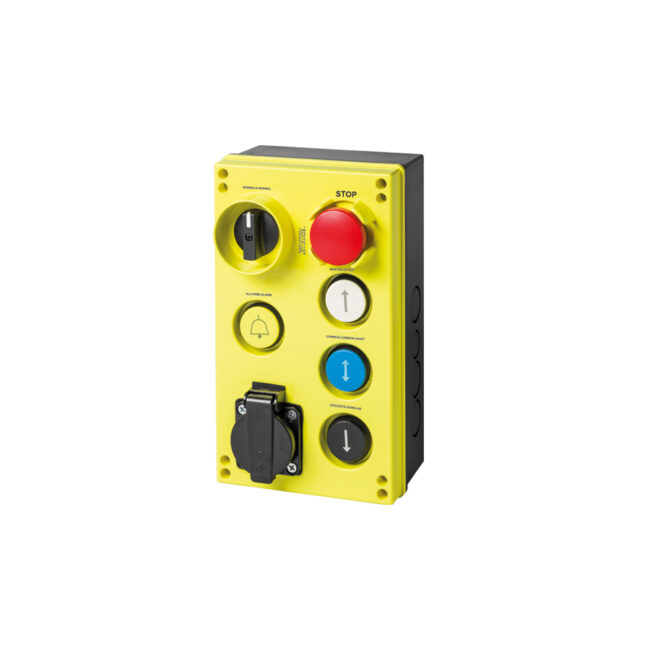

GM455/..
IP54 Inspection box 1 Cam Switch 1-2 90° switching – 3NO + 3NC 1 Emergency stop EN ISO 13850 ø40 push-pull – 1NC 1 Alarm push button – 1NO 1 Up push button – 1NO 1 Common push button – 1NO 1 Down push button – 2NO GM455/EU > 1 Schuko Socket Outlet 16A GM455/FR…

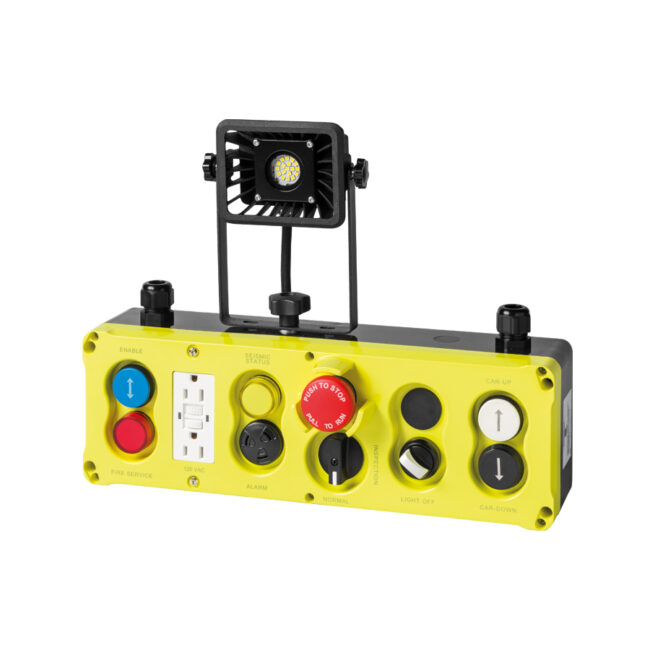

GMS312
IP54 Maintenance station 1 LED lamp – 12W 1000 LUMEN 120V 1 Common push button – 1NO 1 Red LED Pilot Light – AC/DC 24V 1 GFCI socket 15A – 125V 1 Yellow LED Pilot Light – AC/DC 24V GMS312 > 1 BUZZER 30-120 VAC GMS355 > 1 BUZZER 6-28 VAC 1 Emergency stop EN…

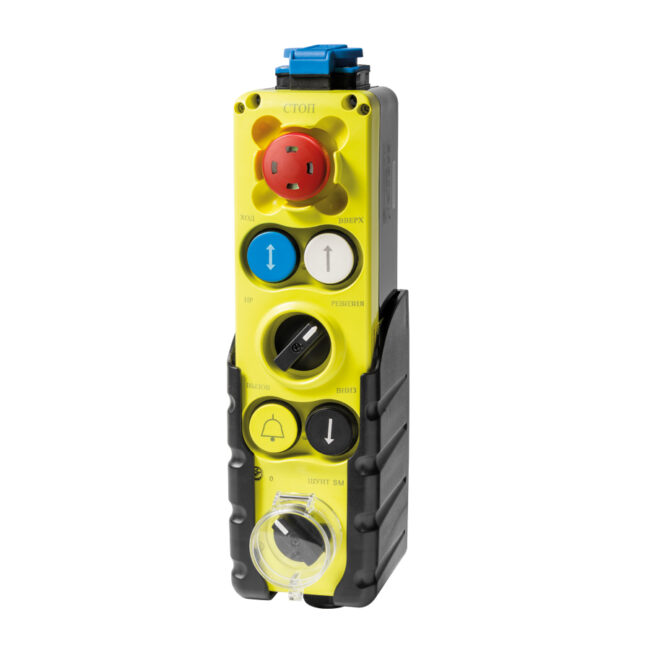

GMS309/..
IP54 Maintenance station GMS309/EU > 1 Schuko Socket Outlet 16A GMS309/FR > 1 Cenelec Socket Outlet GMS309/US > 1 USA Socket Outlet GMS309/SW > 1 Swiss Socket Outlet GMS309/UK > 1 UK Standard Socket Outlet GMS309/CH > 1 Australia and China Standard Socket Outlet 1 Emergency stop EN ISO 13850 ø40 push-pull with vision –…

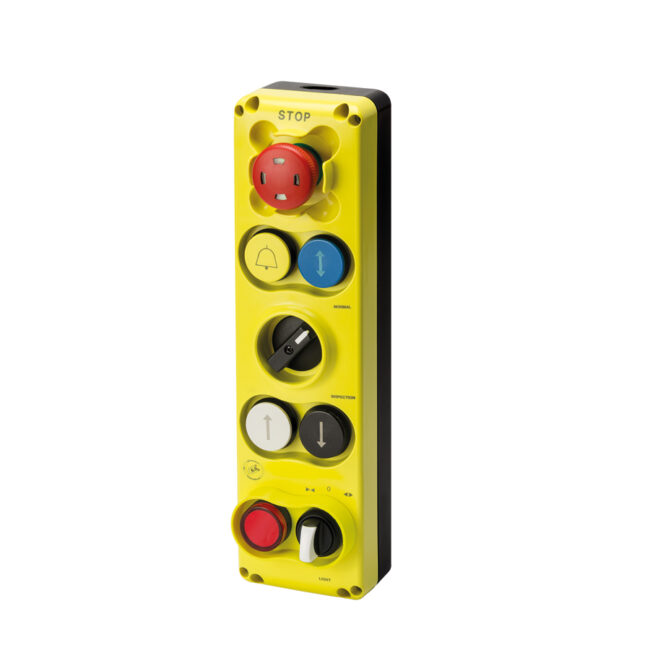

GM734
IP65 Maintenance station – SLIM VERSION (low-bottomed) 1 Emergency stop EN ISO 13850 ø40 push-pull with vision – 2NC 1 Alarm push button – 1NO 1 Common push button – 2NO 1 Cam Switch 1-2 90° switching – 2NO + 2NC 1 Up push button – 2NO + 1NC 1 Down push button – 2NO…

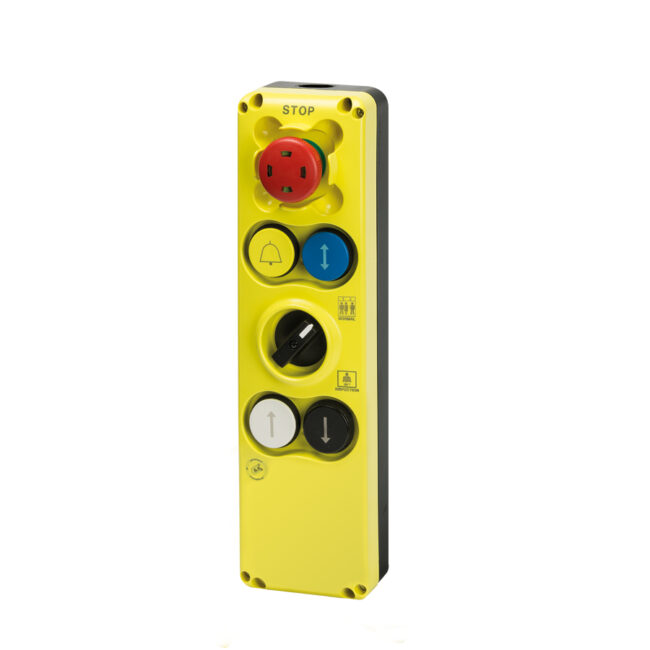

GM731
IP65 Maintenance station – SLIM VERSION (low-bottomed) 1 Emergency stop EN ISO 13850 ø40 push-pull with vision – 1NC 1 Alarm push button – 1NO 1 Common push button – 1NO 1 Cam Switch 1-2 90° switching – 2NO + 2NC 1 Up push button – 2NO 1 Down push button – 2NO …

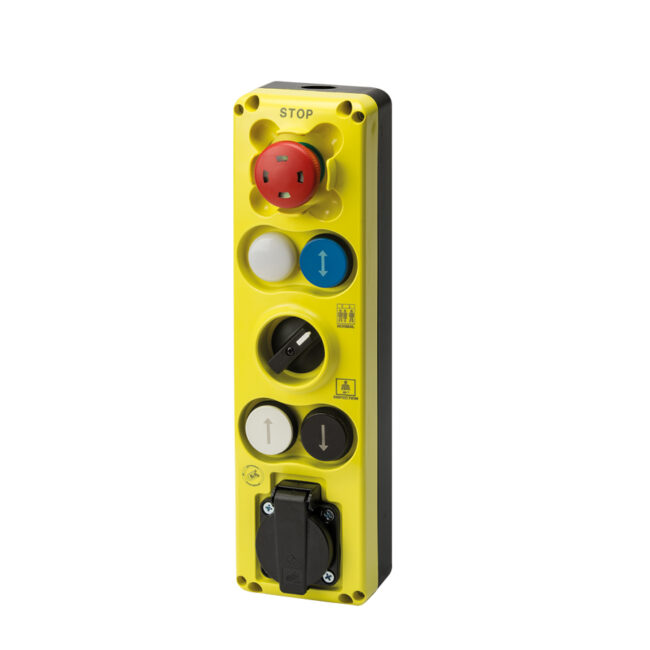

GM738/..
IP54 Maintenance station – SLIM VERSION (low-bottomed) 1 Emergency stop EN ISO 13850 ø40 push-pull with vision – 2NC 1 LED Light indicator ø40 1 Common push button – 2NO 1 Cam Switch 1-2 switching 90° – 2NO + 2NC 1 Up push button – 2NO + 1NC 1 Down push button – 2NO +…

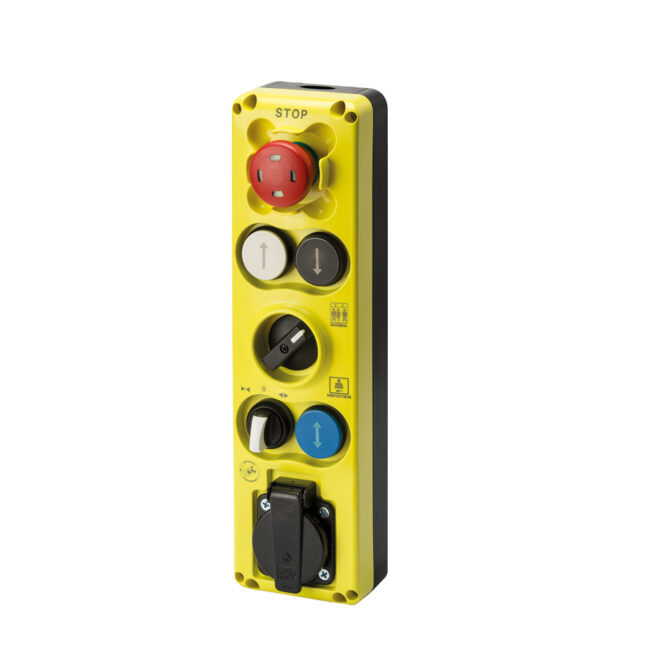

GM737/..
IP54 Maintenance station – SLIM VERSION (low-bottomed) 1 Emergency stop EN ISO 13850 ø40 push-pull with vision – 2NC 1 Up push button – 2NO + 1NC 1 Down push button – 2NO + 1NC 1 Cam Switch 1-2 switching 90° – 2NO + 2NC 1 Knob Selector 1-0-2 – 2NO 1 Common push button…

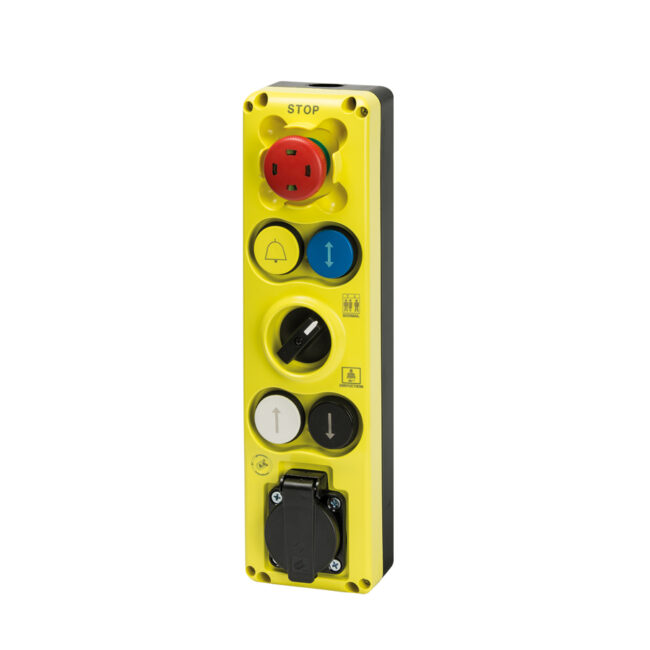

GM730/..
IP54 Maintenance station – SLIM VERSION (low-bottomed) 1 Emergency stop EN ISO 13850 ø40 push-pull with vision – 1NC 1 Alarm push button – 1NO 1 Common push button – 1NO 1 Cam Switch 1-2 switching 90° – 2NO + 2NC 1 Up push button – 2NO 1 Down push button – 2NO GM730/EU >…

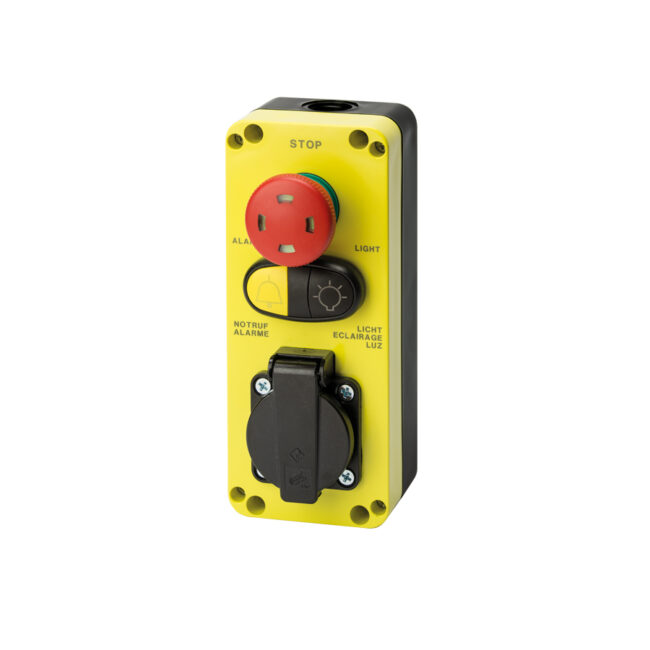

GM491
IP54 Shaft light 1 Emergency stop EN ISO 13850 mushroom ø40 push-pull with vision – 1NC 1 Alarm/Light Dual push button – 2NO GM491/EU > 1 Schuko Socket Outlet 16A GM491/FR > 1 Cenelec Socket Outlet GM491/US > 1 USA Socket Outlet GM491/SW > 1 Swiss Socket Outlet GM491/UK > 1 UK Standard Socket Outlet…

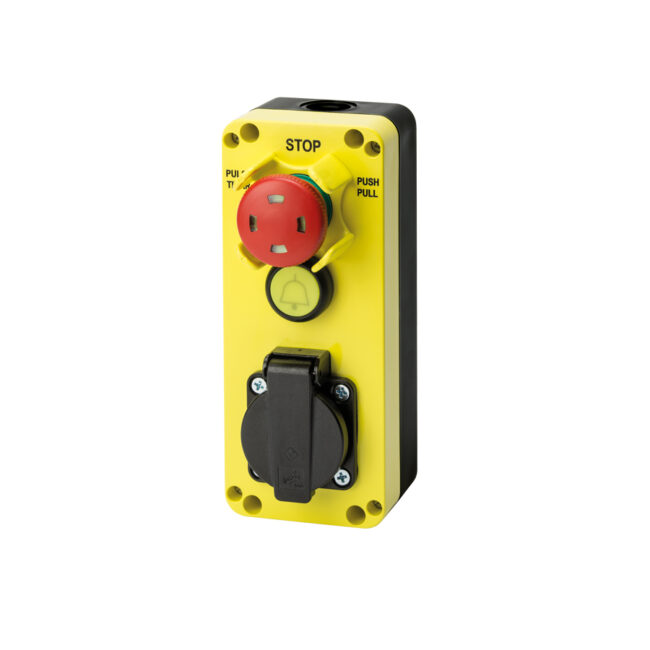

GM421/..
IP54 Shaft light 1 Emergency stop EN ISO 13850 mushroom ø40 push-pull with vision – 1NC 1 Alarm lighted push button – 1NO GM421/EU > 1 Schuko Socket Outlet 16A GM421/FR > 1 Cenelec Socket Outlet GM421/US > 1 USA Socket Outlet GM421/SW > 1 Swiss Socket Outlet GM421/UK > 1 UK Standard Socket Outlet…

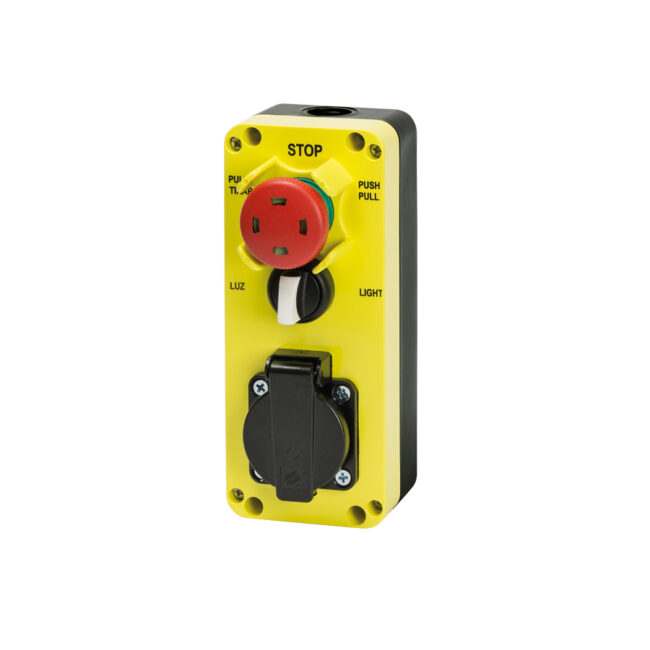

GM403/..
IP54 Shaft light 1 Emergency stop EN ISO 13850 mushroom ø40 push-pull with vision – 1NC 1 Knob Selector 0-1 to 90° – 1NO GM403/EU > 1 Schuko Socket Outlet 16A GM403/FR > 1 Cenelec Socket Outlet GM403/US > 1 USA Socket Outlet GM403/SW > 1 Swiss Socket Outlet GM403/UK > 1 UK Standard Socket…

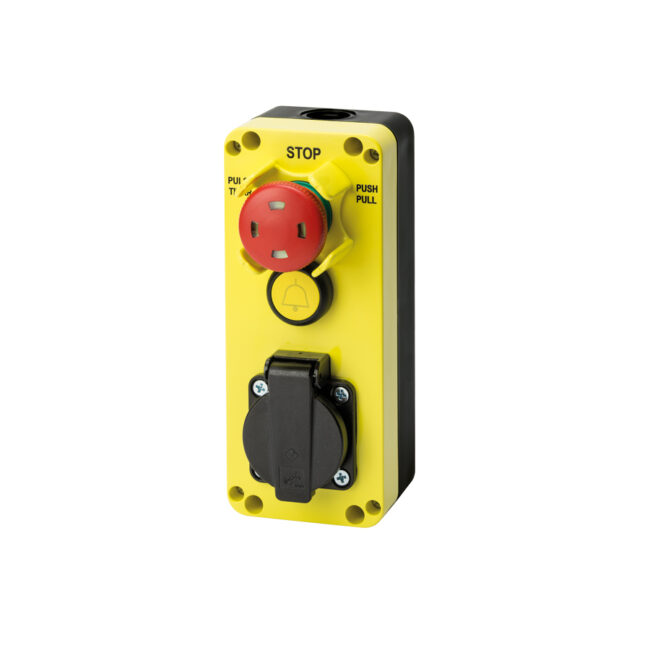

GM401/..
IP54 Shaft light 1 Emergency stop EN ISO 13850 mushroom ø40 push-pull with vision – 1NC 1 Alarm push button – 1NC GM401/EU > 1 Schuko Socket Outlet 16A GM401/FR > 1 Cenelec Socket Outlet GM401/US > 1 USA Socket Outlet GM401/SW > 1 Swiss Socket Outlet GM401/UK > 1 UK Standard Socket Outlet GM401/CH…

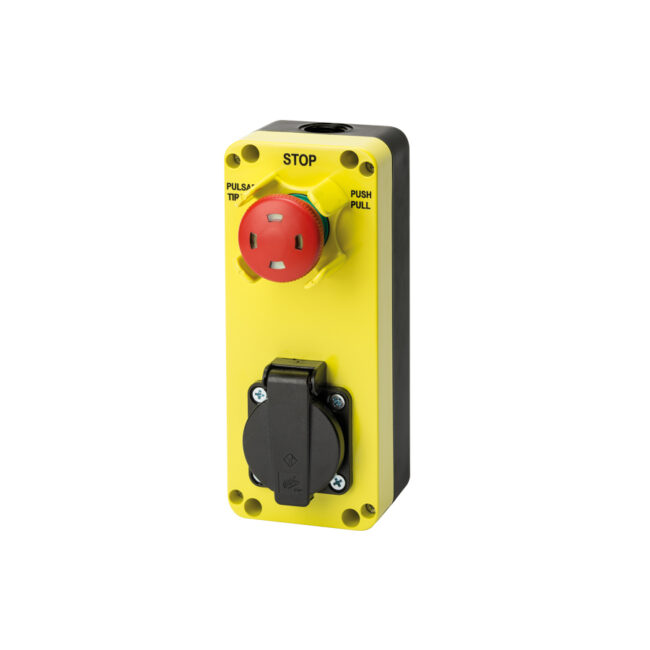

GM406/..
IP54 Control Station 1 Emergency stop EN ISO 13850 mushroom ø40 push-pull with vision – 1NC GM406/EU > 1 Schuko Socket Outlet 16A GM406/FR > 1 Cenelec Socket Outlet GM406/US > 1 USA Socket Outlet GM406/SW > 1 Swiss Socket Outlet GM406/UK > 1 UK Standard Socket Outlet GM406/CH > 1 Australia and China Standard…
GMS168
Lighting device with flashing yellow light, alarm mushroom and pulsed buzzer 1 ALARM Mushroom Button – 1NO 1 Pulsed Buzzer – 12/24V 1 Flashing yellow LED light PCB – NO 5 LUX
GMS167
Lighting device with flashing yellow light, alarm mushroom and continuous buzzer 1 ALARM Mushroom Button – 1NO 1 Continuous Buzzer – 12/24V 1 Flashing yellow LED light PCB – NO 5 LUX
