Busbar System – TR85H7P – Continuous & Pre-mounted conductor Towing Arm – Material: Galvanized steel – Weight: 2,70 kg – Characteristics: It’s designed to connect, by chains, the moving device to the collector for triple trolley current collector.
Busbar System – TR85H7P – Continuous & Pre-mounted conductor Towing arm – Material: Galvanized steel – Weight: 2,40 kg – Characteristics: It’s designed to connect, by chains, the moving device to the collector for double trolley current collector.

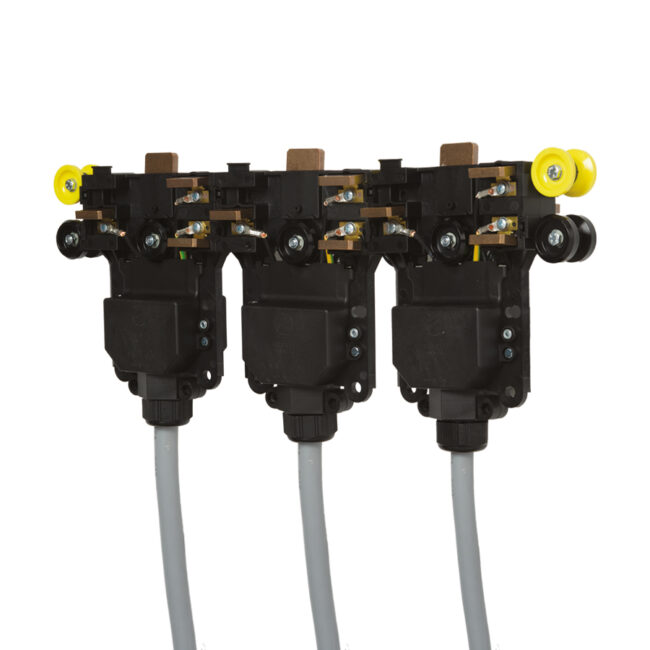

Busbar System – TR85H7P – Continuous & Pre-mounted conductor Trolley current collector – For straight and curved lines – Material: Nylon for body, metal carbon for brush – Characteristics: Amperage 105A – Triple, 7 contact shoes, 4000 g It’s designed to bring power from the conductor line to the crane by means spring loaded metal…

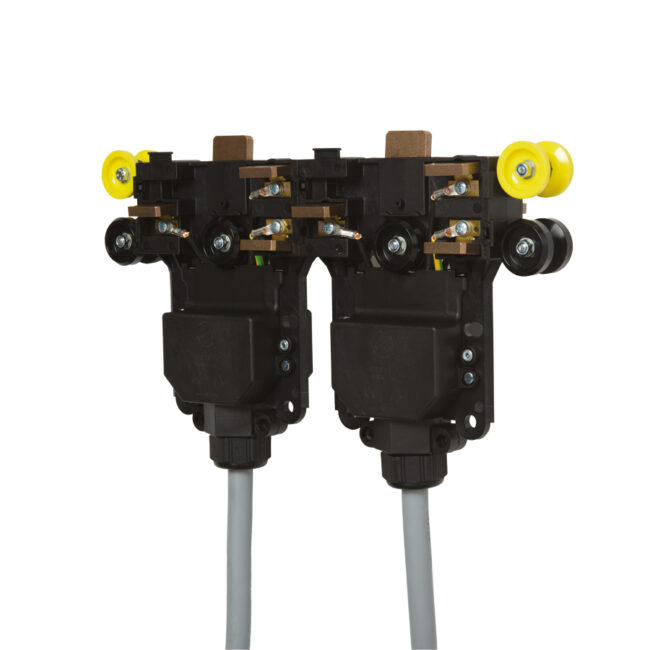

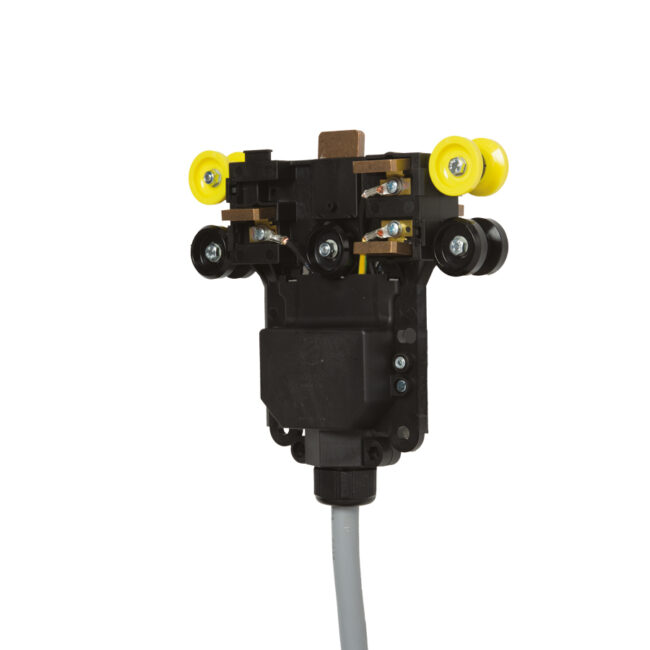

Busbar System – TR85H7P – Continuous & Pre-mounted conductor Trolley current collector – For straight and curved lines – Material: Nylon for body, metal carbon for brush – Characteristics: Amperage 70A – Double, 7 contact shoes, 2700 g It’s designed to bring power from the conductor line to the crane by means spring loaded metal carbon…
Busbar System – TR85H7P – Continuous & Pre-mounted conductor Trolley current collector – For straight and curved lines – Material: Nylon for body, metal carbon for brush – Characteristics: Amperage 35A, 7 contact shoes, 1370 g It’s designed to bring power from the conductor line to the crane by means spring loaded metal carbon brushes.…

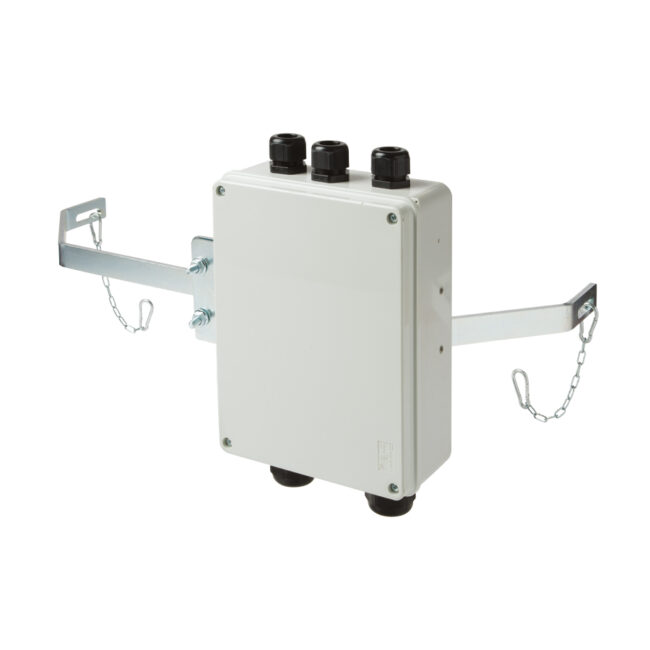

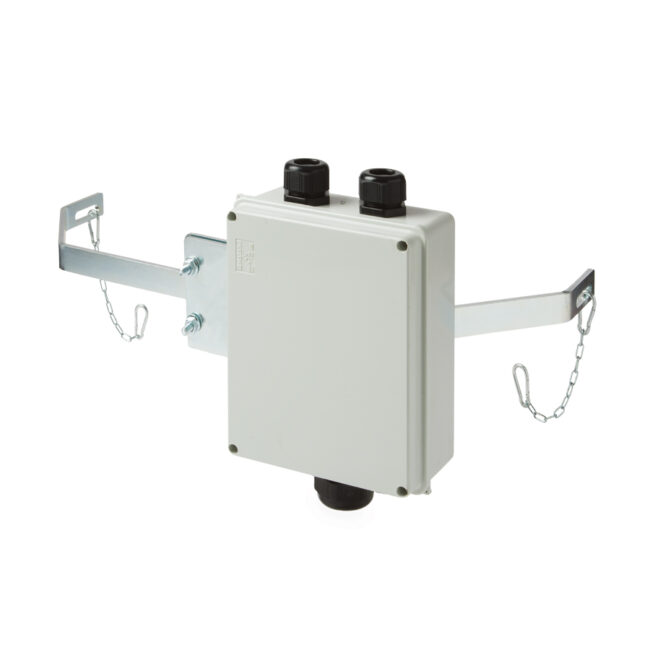

Busbar System – TR85H7P – Continuous & Pre-mounted conductor Transition box – Weight: 3.2 kg – Characteristics: Box for parallel connections 200A or 320A. Composed by cable glands and connection clamp.

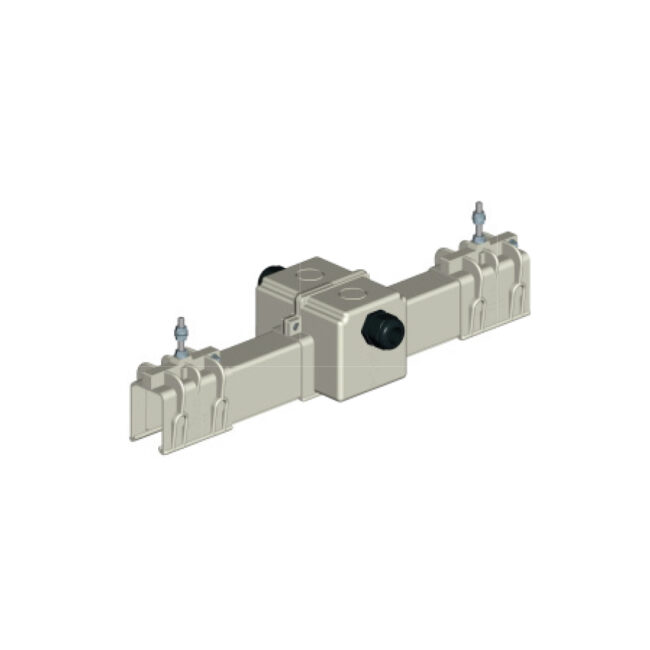

Busbar System – TR85H7P – Continuous conductor In-line feed box – Material: Nylon, PVC – Weight: 1560 g – Characteristics: Mounted along the line, it provides intermediate feeding points to reduce voltage drop. It’s provided with 2 cable glands PG29. The connection is made with relevant screws, not included.

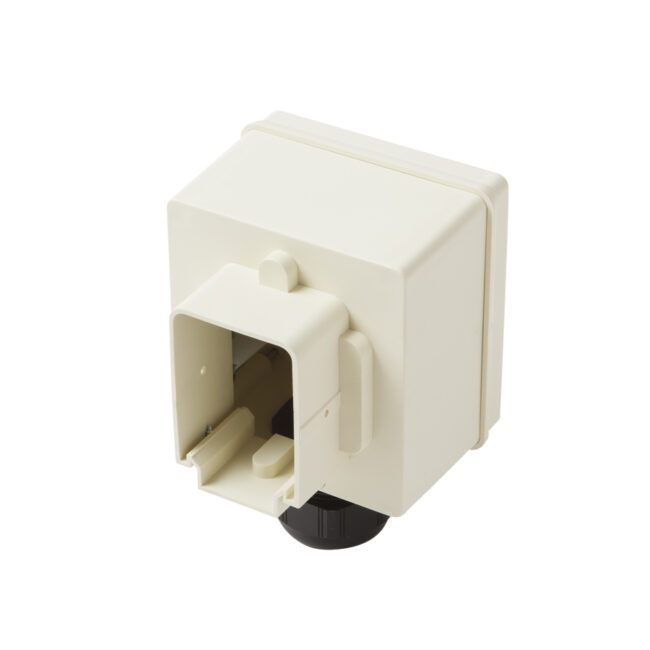

Busbar System – TR85H7P – Continuous conductor End feeder box – Material: Nylon – Weight: 490 g – Characteristics: Mounted at the extremity of the line, it provides an easy electrical connection for the line. It’s supplied with a M40 cable gland; for copper type up to CSH7100.

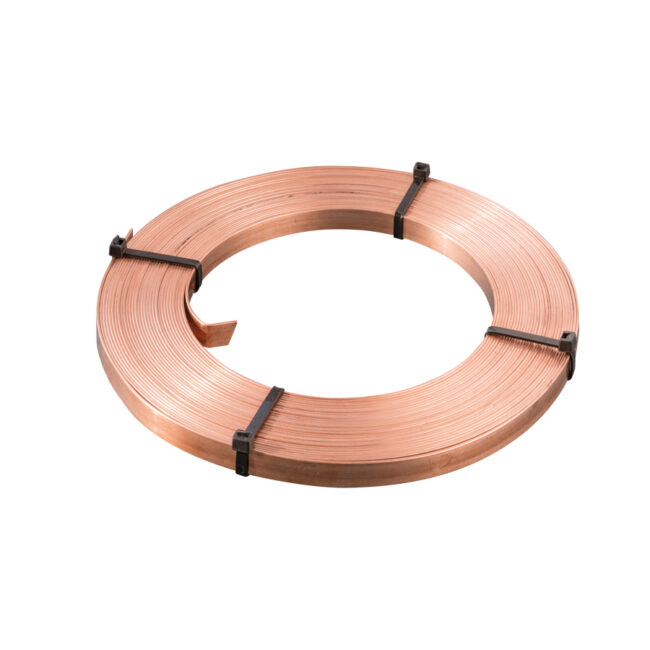

Busbar System – TR85H7P – Continuous conductor Copper conductor – Material: ETP copper – Characteristics: CSH750 – 50 A, 12.5×0.8 mm copper strip, 90g/m CSH7100 – 100 A, 12.5×1.8mm copper strip, 190g/m CSH7160 – 160 A, 12,5×2,5mm copper strip, 280 g/m It’s possible to connect in parallel two strips to reach 200A (2×100) and 320A…

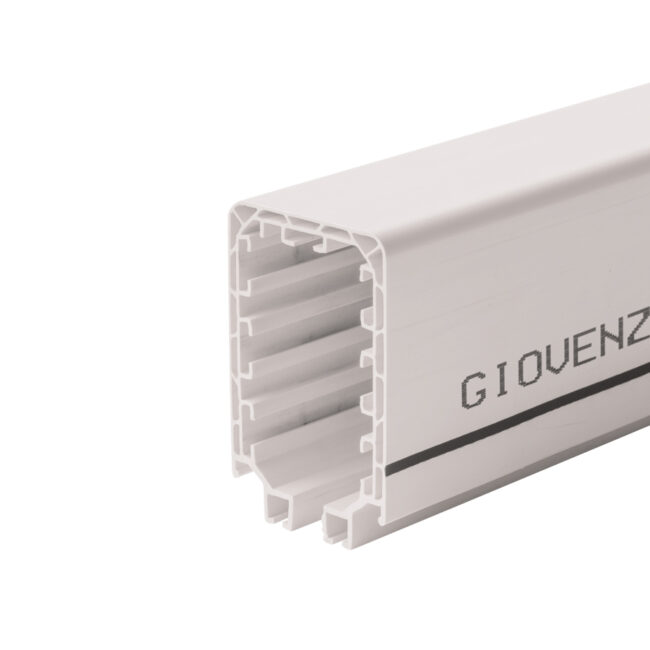

Busbar System – TR85H7P – Continuous conductor Insulating housing – Material: PVC – Weight: 1025 g/m – Characteristics: The insulating profiles are 4m long, can be joined each other easily and can accommodate up to 7 copper strips with different sections, inserted continuously along the entire length of the line. Curved insulating housings are available…
Busbar System – TR85 – Continuous & Pre-mounted conductor Sealing strip – Material: PVC – Weight: 164 g/m – Characteristics: This gasket, inserted in the lower grooves of the housing, provides an IP44 protection for the line.
Busbar System – TR85 – Continuous & Pre-Mounted conductor Fixed point box – Material: Galvanized steel – Weight: 553 g – Characteristics: Installed in place of a hanger, it provides a fixed point in order to ensure distribution of expansion of the line.
Busbar System – TR85 – Continuous & Pre-mounted conductor End Cap – Material: Nylon – Weight: 57 g – Characteristics: Fixed at the end of the line, it ensures protection for the line.
Busbar System – TR85 – Continuous & Pre-mounted conductor Hanger Clamp – Material: Galvanized steel – Weight: 156 g – Characteristics: Used to support the line on brackets and let the bar free to move for temperature’s variation; the max span between supports is 2 m. In case of hard environment conditions steel hangers can…
Busbar System – TR85 – Continuous & Pre-mounted conductor Hanger Clamp – Material: Nylon – Weight: 110 g – Characteristics: Used to support the line on brackets and let the bar free to move for temperature’s variation; the max span between supports is 2 m. In case of hard environment conditions steel hangers can be…
Busbar System – TR85 – Continuous conductor Joint Box – Material: Galvanized steel – Weight: 530 g – Characteristics: It’s used to join two bars and protect junctions, there are 4 bolts and an adhesive rubber to insulate the joint.
Busbar System – TR85 – Continuous conductor Joint Box – Material: Nylon – Weight: 225 g – Characteristics: It’s used to join two bars and protect junctions, two screws guarantee the closure of connection.
Busbar System – TR60 & TR85- Continuous conductor De-coil unit – Material: Wood – Weight: 6,8 kg – Characteristics: It simplifies the operation of unfolding of the copper coil into the busbar.
Busbar System – TR60 & TR85 – Continuous & Pre-mounted conductor Spring loaded towing arm – Material: Galvanized steel – Weight: 1,27 kg – Characteristics: Special spring-loaded system to be use on interrupted lines with transfer guide TR6034, to create a smooth transition from one track to another.
Busbar System – TR60 & TR85 – Continuous & Pre-Mounted conductor Towing arm – Material: Galvanized steel – Weight: 1,40 kg – Characteristics: It’s designed to connect, by chains, the moving device to the collector.
